DIY: Sherlock Pipe mod, 14mm joint

Accessories
1

Posted this on Reddit in the past. Reposting here for posterity:

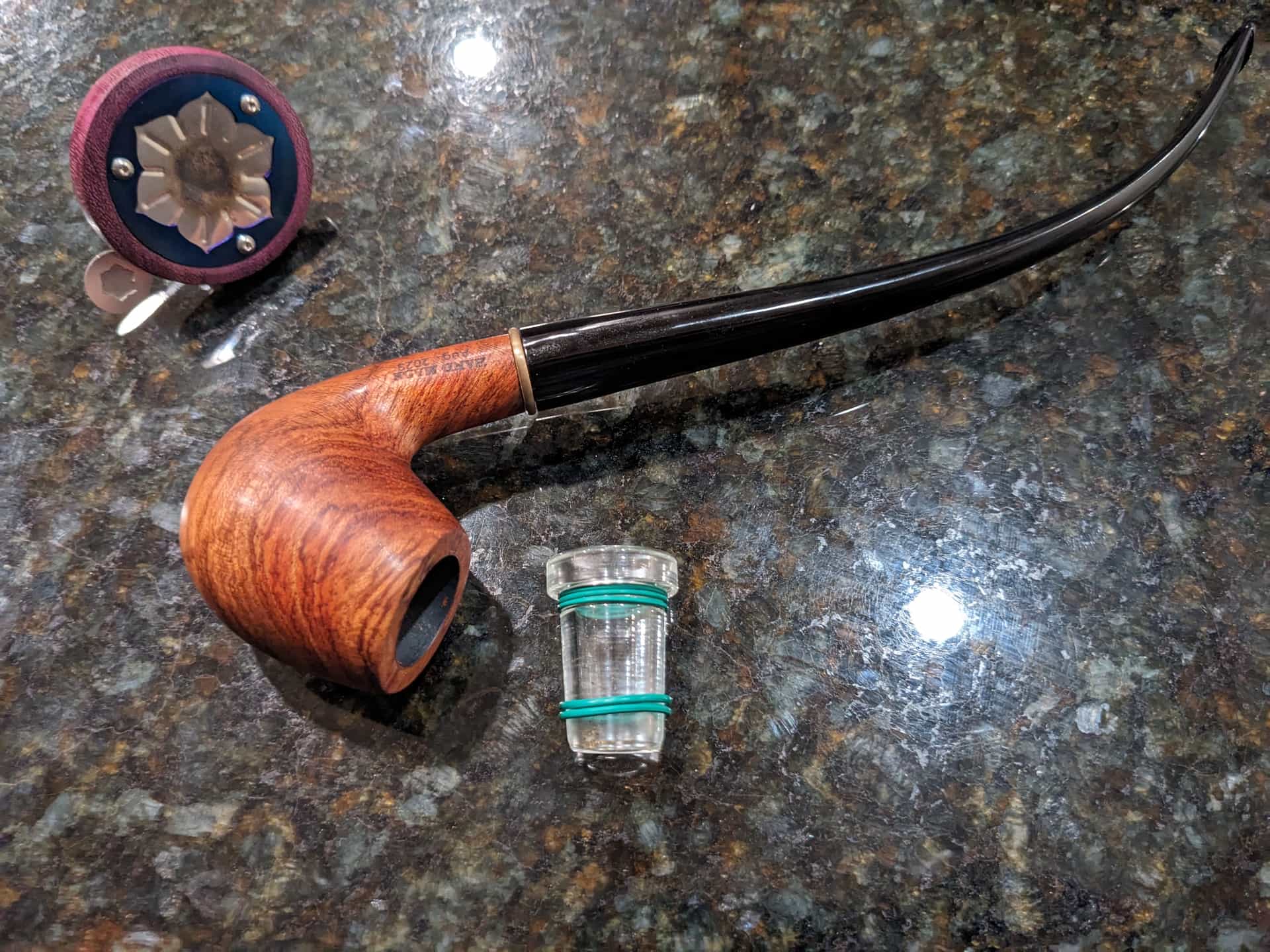

This is a DIY guide on how to squeeze a 14mm adapter into the bowl of a sherlock style tobacco pipe using o-rings! This mod works well with many 14mm vape connections: Dynavaps, TheRougeWaxWorks quartz, Inhale Lotus, ball vapes, etc.

Here’s my build list if interested. I’m not affiliated with any of these products. Cheers:

  • MUXIANG Churchwarden Tobacco Pipe
  • Unground Glass 14mm to 19mm Adapter
  • Fluorine Rubber O-Rings, 16mm OD 14mm ID 1mm Width:
    • Top adapter o-ring, three used
  • Fluorine Rubber O-Rings, 16mm OD 13mm ID 1.5mm Width:
    • Bottom adapter o-ring, two used
  • (Optional) Glass Rolling Filter Tips 8mm Outer Diameter 35mm Length:
    • This part is an optional alternative to the 9mm active carbon filter that may come with the pipe or no filter at all.

1000001797
10000017971920×2560 297 KB

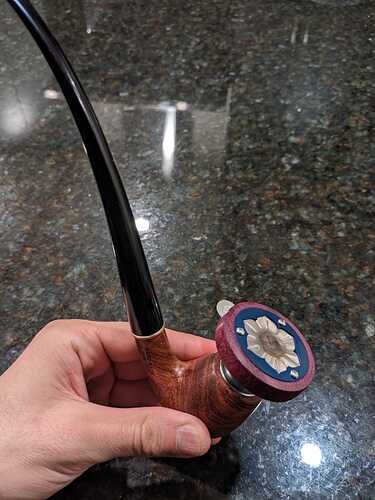

1000001799
10000017991920×2560 218 KB

1000001796
10000017961920×2560 322 KB

1000001798
10000017981920×2560 320 KB

1000001800
10000018001920×1440 245 KB

12 Likes
2

I plan to do something similar with my lotus when I buy a high quality churchwarden pipe (Ropp, Molina, Savinelli). I have a caulk tube full of food safe to 600f silicone. My plan was to block off the bottom of the bowl, then fill it with silicone, push in the lotus bowl and let it cure. I should wind up with a perfectly fitting, airtight plug with a 14mm hole, after a little trimming.

2 Likes
3

Right on. I’ve worked with Sil-Bond’s food grade silicone adhesive before on separate projects to glue/seal rubber grommets into holes for pipe pieces. Very interesting stuff. Super strong.
